This function extracts the legend from a ggplot object and returns it as a grob (graphical object). The extracted legend can then be used independently, for instance, to combine the legend with other plots.
Value
A grob representing the legend of the ggplot object, or an empty
grid::nullGrob() when the plot has no legend (e.g. a mapped layer with
no rows, such as a single-location flux network), so the result can always
be passed to gridExtra::grid.arrange() or cowplot::plot_grid().
Details
This function converts a ggplot object into a grob using ggplotGrob() and
extracts the legend. ggplot2 >= 3.5 lays out one guide-box slot per position
("guide-box-right", "guide-box-bottom", ...), leaving empty slots
as zero grobs; the first non-empty slot is returned, and the single
"guide-box" grob of older ggplot2 versions is matched too.
Examples
# Create a simple ggplot object
p <- ggplot2::ggplot(mtcars, ggplot2::aes(x = wt, y = mpg, color = factor(gear))) +
ggplot2::geom_point() +
ggplot2::scale_color_discrete(name = "Gear")
# Extract the legend from the plot
legend <- get_ggplot_legend(p)

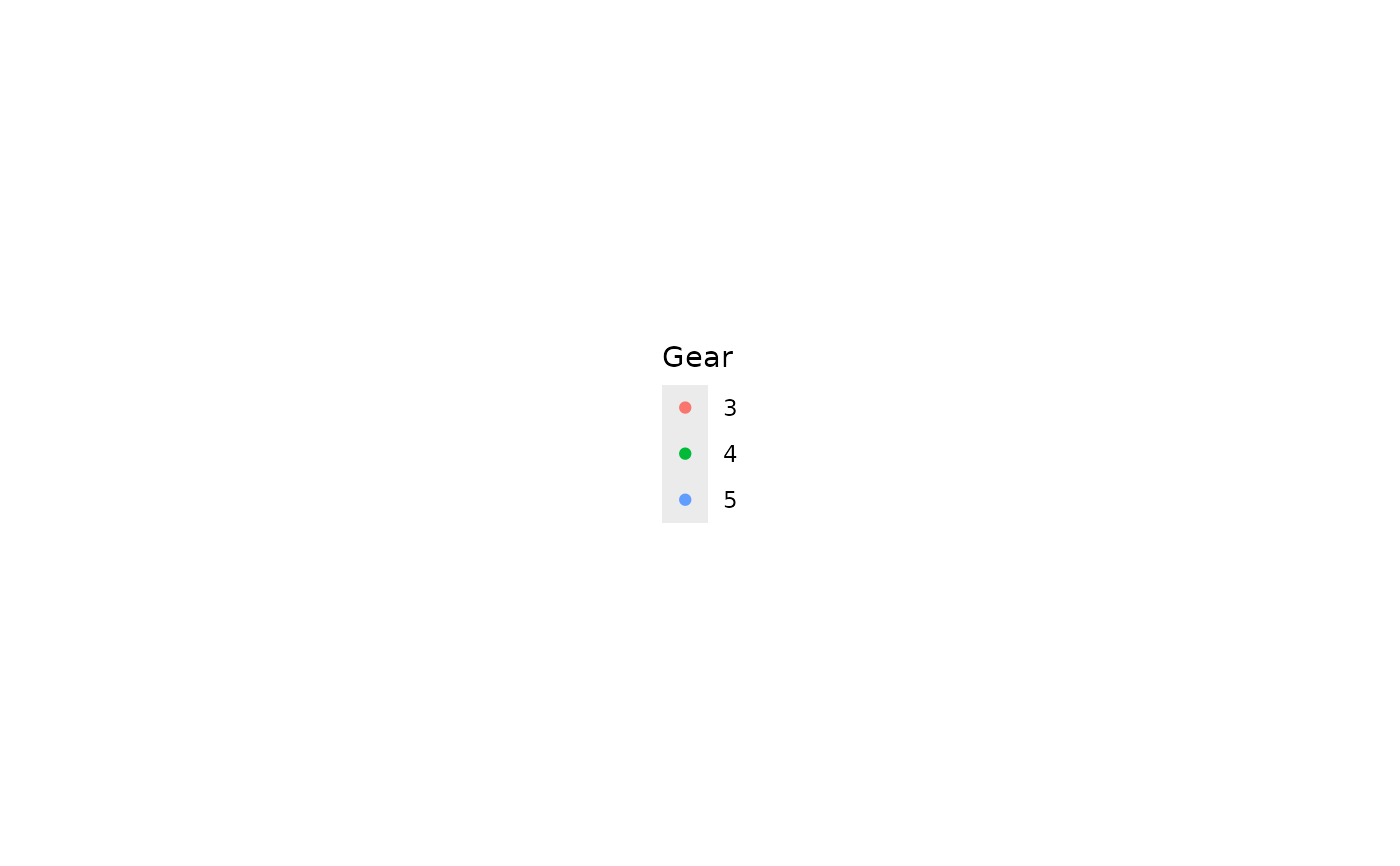

# Display the extracted legend
grid::grid.draw(legend)
