Overview

This guide shows how to run single simulations using the run_simulation() function with deterministic parameters. run_simulation() is the pure-R transmission engine at the core of MOSAIC: a stochastic metapopulation SEIR model of cholera, with human and environmental transmission, vaccination and spatial coupling.

For running multiple simulations with parameter stochasticity and uncertainty quantification, see the Running MOSAIC vignette.

Before you begin: Complete the Installation vignette to set up MOSAIC and its dependencies.

Quick Start

MOSAIC includes pre-configured parameter sets for different transmission scenarios. Let’s run and visualize two key scenarios: epidemic and endemic transmission.

Epidemic Scenario

The epidemic configuration simulates outbreak dynamics with explosive growth patterns typical of cholera epidemics.

library(MOSAIC)

# Run epidemic scenario
config <- MOSAIC::config_simulation_epidemic

model_epidemic <- run_simulation(config = config, seed = 123, quiet = FALSE)

# Extract time series results (locations x time matrices)
cases_epidemic <- as.matrix(model_epidemic$results$reported_cases)
deaths_epidemic <- as.matrix(model_epidemic$results$reported_deaths)

# Get metadata
locations <- config_simulation_epidemic$location_name
n_locations <- length(locations)
n_timesteps <- ncol(cases_epidemic)

# Calculate total burden
total_cases_epidemic <- sum(cases_epidemic, na.rm = TRUE)
total_deaths_epidemic <- sum(deaths_epidemic, na.rm = TRUE)

cat(sprintf("Epidemic Scenario Results:\n"))
cat(sprintf("  Total cases: %s\n", format(total_cases_epidemic, big.mark = ",")))
cat(sprintf("  Total deaths: %s\n", format(total_deaths_epidemic, big.mark = ",")))
cat(sprintf("  Locations: %d\n", n_locations))
cat(sprintf("  Time steps: %d\n", n_timesteps))

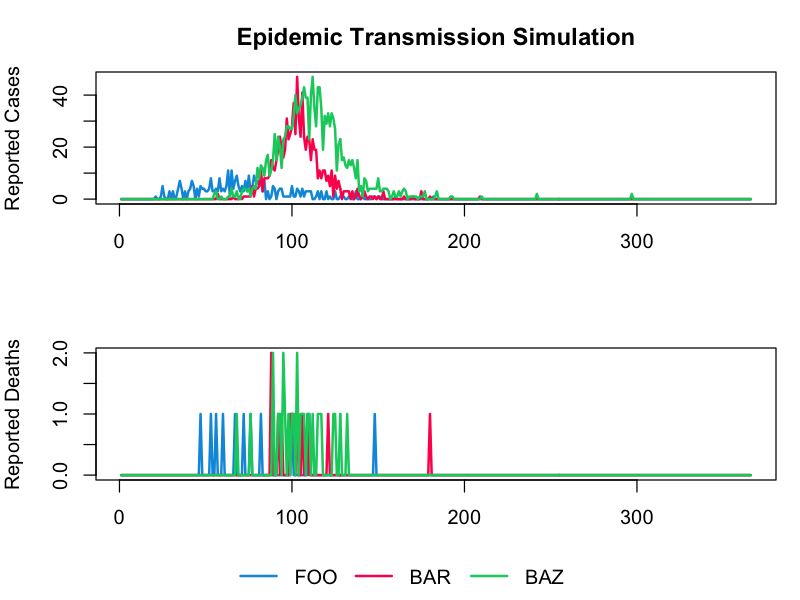

# Plot epidemic time series by location
png("figures/running_mosaic_epidemic.png", width = 800, height = 600, res = 120)

colors <- c("#009ADE", "#FF1F5B", "#00CD6C")  # Blue, Pink, Green
par(mfrow = c(2, 1), mar = c(3, 4, 3, 1), oma = c(2, 0, 0, 0))

matplot(t(cases_epidemic), type = "l", lty = 1, lwd = 2, col = colors,
        xlab = "", ylab = "Reported Cases",
        main = "Epidemic Transmission Simulation")

matplot(t(deaths_epidemic), type = "l", lty = 1, lwd = 2, col = colors,
        xlab = "Time step", ylab = "Reported Deaths", main = "")

par(fig = c(0, 1, 0, 1), oma = c(0, 0, 0, 0), mar = c(0, 0, 0, 0), new = TRUE)
plot(0, 0, type = "n", bty = "n", xaxt = "n", yaxt = "n")
legend("bottom", legend = locations, col = colors, lty = 1, lwd = 2,
       horiz = TRUE, bty = "n", xpd = TRUE)

dev.off()
cat("Saved: figures/running_mosaic_epidemic.png\n")

Endemic Scenario

The endemic configuration simulates stable, persistent transmission patterns with seasonal fluctuations.

# Run endemic scenario
config <- MOSAIC::config_simulation_endemic

model_endemic <- run_simulation(config = config, seed = 123, quiet = FALSE)

# Extract time series results (locations x time matrices)
cases_endemic <- as.matrix(model_endemic$results$reported_cases)
deaths_endemic <- as.matrix(model_endemic$results$reported_deaths)

# Calculate total burden
total_cases_endemic <- sum(cases_endemic, na.rm = TRUE)
total_deaths_endemic <- sum(deaths_endemic, na.rm = TRUE)

cat(sprintf("Endemic Scenario Results:\n"))
cat(sprintf("  Total cases: %s\n", format(total_cases_endemic, big.mark = ",")))
cat(sprintf("  Total deaths: %s\n", format(total_deaths_endemic, big.mark = ",")))

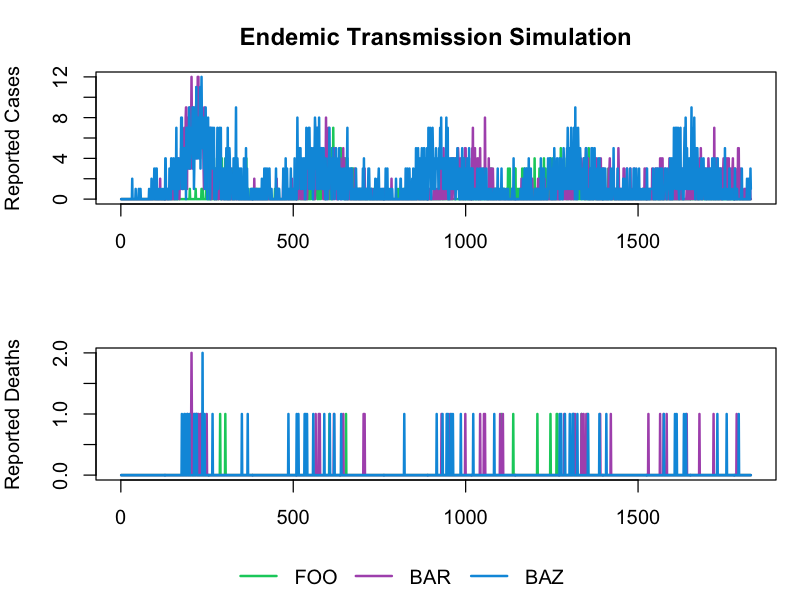

# Plot endemic time series by location
png("figures/running_mosaic_endemic.png", width = 800, height = 600, res = 120)

colors <- c("#00CD6C", "#AF58BA", "#009ADE")  # Green, Purple, Blue
par(mfrow = c(2, 1), mar = c(3, 4, 3, 1), oma = c(2, 0, 0, 0))

matplot(t(cases_endemic), type = "l", lty = 1, lwd = 2, col = colors,
        xlab = "", ylab = "Reported Cases",
        main = "Endemic Transmission Simulation")

matplot(t(deaths_endemic), type = "l", lty = 1, lwd = 2, col = colors,
        xlab = "Time step", ylab = "Reported Deaths", main = "")

par(fig = c(0, 1, 0, 1), oma = c(0, 0, 0, 0), mar = c(0, 0, 0, 0), new = TRUE)
plot(0, 0, type = "n", bty = "n", xaxt = "n", yaxt = "n")
legend("bottom", legend = locations, col = colors, lty = 1, lwd = 2,
       horiz = TRUE, bty = "n", xpd = TRUE)

dev.off()
cat("Saved: figures/running_mosaic_endemic.png\n")

Running simulations for multiple locations

library(MOSAIC)

iso_codes <- iso_codes_mosaic

config <- get_location_config(iso = iso_codes)
config$beta_j0_hum <- config$beta_j0_hum*2
config$beta_j0_env <- config$beta_j0_env*4

results <- run_simulation(config, seed = 123, quiet = FALSE)

# Extract reported cases
cases <- as.matrix(results$results$reported_cases)

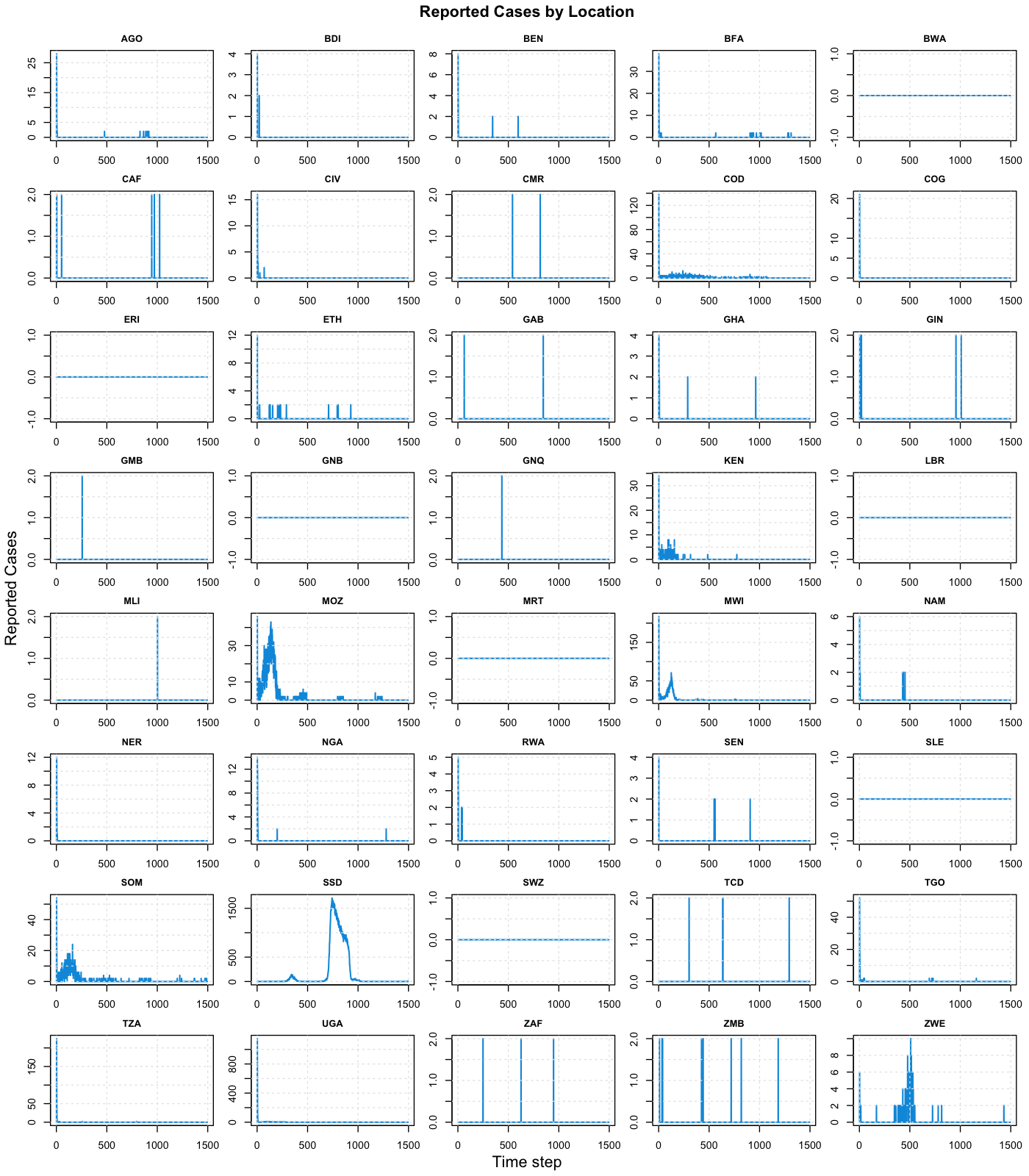

# Create grid plot showing each location separately
png("figures/multi_location_grid.png", width = 1400, height = 1600, res = 130)
par(mfrow = c(ceiling(nrow(cases) / 5), 5), mar = c(2, 2, 2, 1), oma = c(2, 2, 2, 0))

for (i in 1:nrow(cases)) {
     plot(cases[i, ], type = "l", lwd = 1.5, col = "#009ADE",
          main = config$location_name[i],
          xlab = "", ylab = "",
          cex.main = 0.9)
     grid(col = "gray90")
}

# Add common axis labels
mtext("Time step", side = 1, outer = TRUE, line = 0.5)
mtext("Reported Cases", side = 2, outer = TRUE, line = 0.5)
mtext("Reported Cases by Location", side = 3, outer = TRUE, line = 0.5, font = 2)
dev.off()
cat("Saved: figures/multi_location_grid.png\n")
