Container platform

Comprehensive guide to using Docker containers with idmtools for reproducible simulations.

Overview

The Container Platform allows the use of Docker containers and the ability to run jobs locally. This platform leverages Docker's containerization capabilities to provide a consistent and isolated environment for running computational tasks. The ContainerPlatform is responsible for managing the creation, execution, and cleanup of Docker containers used to run simulations.

Key features

  • Docker Integration: Ensures that Docker is installed and the Docker daemon is running before executing any tasks.
  • Experiment and Simulation Management: Provides methods to run and manage experiments and simulations within Docker containers.
  • Volume Binding: Supports binding host directories to container directories, allowing for data sharing between the host and the container.
  • Container Validation: Validates the status and configuration of Docker containers to ensure they meet the platform's requirements.
  • Script Conversion: Converts scripts to Linux format if the host platform is Windows, ensuring compatibility within the container environment.
  • Job History Management: Keeps track of job submissions and their corresponding container IDs for easy reference and management.
  • Minimal Docker image: Requires only Linux OS, Python 3, and mpich installed in the Docker image. ContainerPlatform binds the host directory to the container directory for running the simulation.
  • Flexible simulation directory: Customize the simulation output folder structure by including/excluding suite, experiment, or simulation names in the path.

Prerequisites

  • Docker installed and Docker daemon running
  • Linux, or Windows with WSL2
  • Python 3.10+ (64-bit)

Set up a virtual environment

1
2
3
4
5
6
7
python -m venv container_env

# Windows
container_env\Scripts\activate

# Linux/macOS
source container_env/bin/activate

Install idmtools

1
pip install idmtools[container]

Windows-specific setup

Enable Developer Mode — required for Docker to create symlinks inside containers:

Settings → Update & Security → For Developers → Select Developer Mode

Enable long path support (if paths exceed 255 characters):

Local Computer Policy → Computer Configuration → Administrative Templates → System → Filesystem → Enable Win32 long paths

ContainerPlatform attributes

Attribute Description
job_directory The directory where job data is stored.
docker_image The Docker image to run the container.
extra_packages Additional packages to install in the container.
data_mount The data mount point in the container.
user_mounts User-defined mounts for additional volume bindings.
container_prefix Prefix for container names.
force_start Flag to force start a new container.
new_container Flag to start a new container.
include_stopped Flag to include stopped containers in operations.
debug Flag to enable debug mode.
container_id The ID of the container being used.
max_job The maximum number of jobs to run in parallel.
retries The number of retries to attempt for a job.
ntasks Number of MPI processes. If greater than 1, it triggers mpirun.

Basic usage

Create a Python file named example_demo.py and add the following code:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
from idmtools.entities.command_task import CommandTask
from idmtools.entities.experiment import Experiment
from idmtools_platform_container.container_platform import ContainerPlatform

# Initialize the platform
from idmtools.core.platform_factory import Platform
platform = Platform('Container', job_directory="destination_directory")
# Or
# platform = ContainerPlatform(job_directory="destination_directory")

# Define task
command = "echo 'Hello, World!'"
task = CommandTask(command=command)

# Run an experiment
experiment = Experiment.from_task(task, name="example")
experiment.run(platform=platform)

Run on your host machine:

1
python example_demo.py

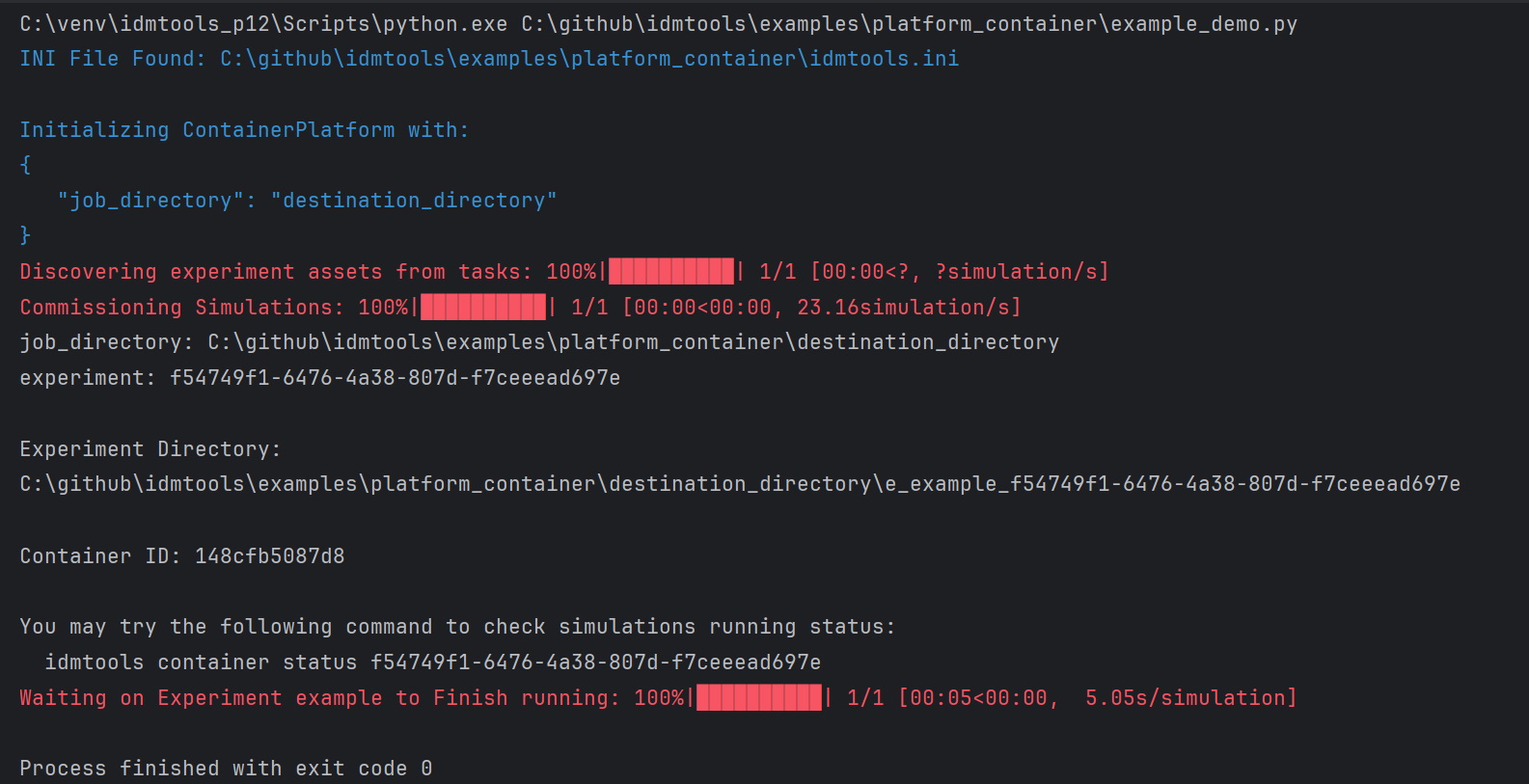

Output

Example output

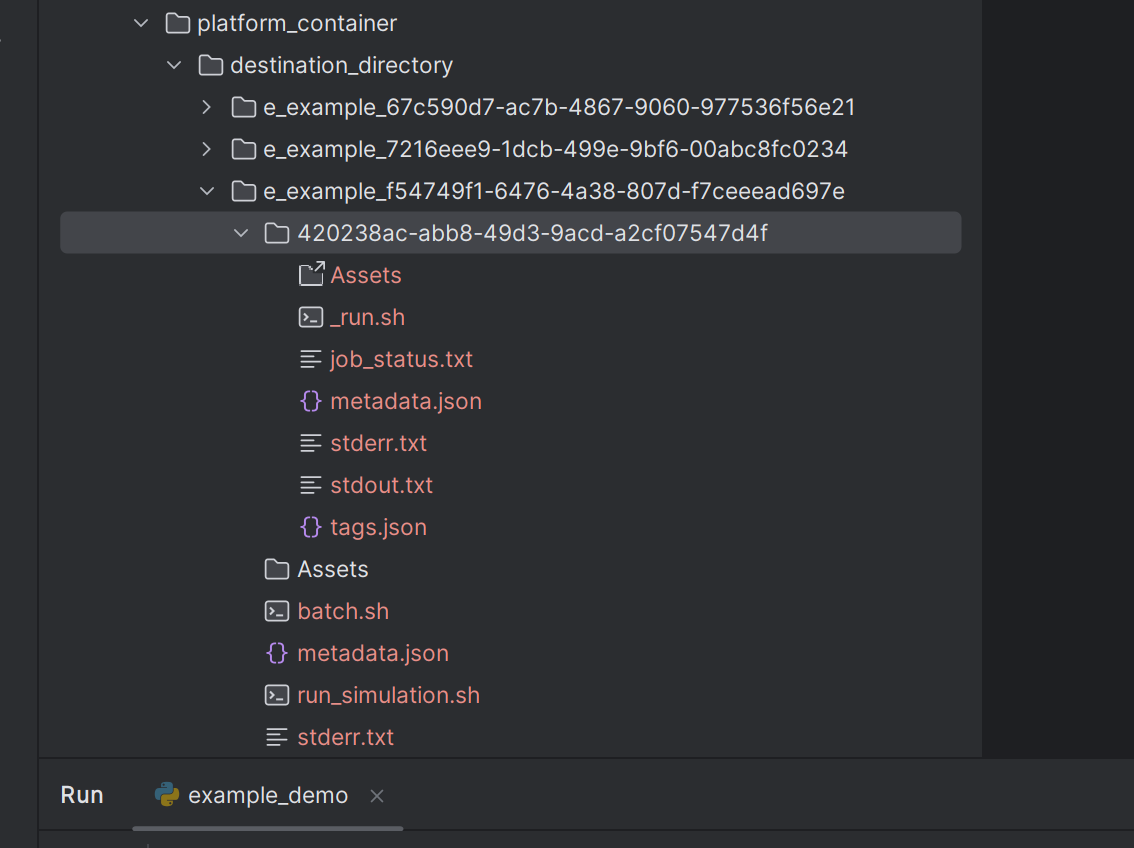

Results saved in the destination_directory on the host machine:

Host results

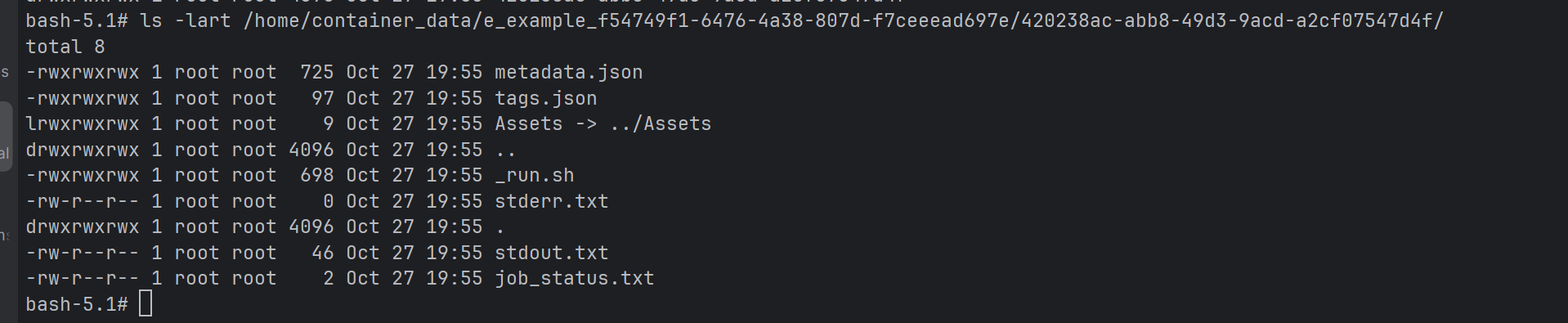

Results inside the Docker container:

Container results

Attribute examples

extra_packages

Install additional packages into the container at runtime:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
from idmtools.assets import Asset, AssetCollection
from idmtools.core.platform_factory import Platform
from idmtools.entities.command_task import CommandTask
from idmtools.entities.experiment import Experiment
import os

platform = Platform("Container", job_directory="DEST", new_container=True,
                    extra_packages=['astor', 'numpy', 'pytest'],
                    docker_image="ghcr.io/institutefordiseasemodeling/container-rocky-runtime:0.0.6")
command = "python Assets/model_file.py"
task = CommandTask(command=command)

model_asset = Asset(absolute_path=os.path.join("inputs", "extra_packages", "model_file.py"))
common_assets = AssetCollection()
common_assets.add_asset(model_asset)

experiment = Experiment.from_task(task, name="run_with_extra_packages", assets=common_assets)
experiment.run(wait_until_done=True, platform=platform)

new_container

Force a new container to be created for each experiment:

1
2
with Platform("Container", job_directory="DEST", new_container=True) as platform:
    experiment.run(wait_until_done=True)

docker_image

Use a specific Docker image:

1
2
3
with Platform("Container", job_directory="DEST",
              docker_image="docker-production.packages.idmod.org/idmtools/container-test:0.0.3") as platform:
    experiment.run(wait_until_done=True)

force_start

Force start a new or stopped container:

1
2
with Platform("Container", job_directory="DEST", force_start=True) as platform:
    experiment.run(wait_until_done=True)

user_mounts

Mount additional host directories into the container:

1
2
3
4
5
6
7
8
import os

user_mounts = {
    os.path.join(os.getcwd(), 'inputs', 'python_models'): "/home/dest",
    os.path.dirname(os.getcwd()): "/home/dest2"
}
with Platform("Container", job_directory="DEST", user_mounts=user_mounts) as platform:
    experiment.run(wait_until_done=True)

data_mount

Use a custom data mount point instead of the default /home/container-data:

1
2
with Platform("Container", job_directory="DEST", data_mount="/home/data") as platform:
    experiment.run(wait_until_done=True)

container_prefix

Add a prefix to container names:

1
2
with Platform("Container", job_directory="DEST", container_prefix="my_project") as platform:
    experiment.run(wait_until_done=True)

retries

Retry failed jobs automatically:

1
2
3
4
from idmtools_platform_container.container_platform import ContainerPlatform

with ContainerPlatform(job_directory="DEST", retries=3) as platform:
    experiment.run(wait_until_done=True)

Folder structure

By default, idmtools generates simulations with the following structure:

1
job_directory/s_<suite_name>_<suite_uuid>/e_<experiment_name>_<experiment_uuid>/<simulation_uuid>
  • job_directory — base directory for all output
  • s_<suite_name>_<uuid> — suite directory (name truncated to 30 characters, prefixed with s_)
  • e_<experiment_name>_<uuid> — experiment directory (name truncated to 30 characters, prefixed with e_)
  • <simulation_uuid> — simulation directory (UUID only)

If no suite is specified:

1
job_directory/e_<experiment_name>_<experiment_uuid>/<simulation_uuid>

Example — given suite name my_very_long_suite_name_for_malaria_experiment and experiment name test_experiment_with_calibration_phase:

1
2
3
4
job_directory/
└── s_my_very_long_suite_name_for_m_12345678-9abc-def0-1234-56789abcdef0/
    └── e_test_experiment_with_calibrati_abcd1234-5678-90ef-abcd-1234567890ef/
        └── 7c9e6679-7425-40de-944b-e07fc1f90ae7/

No-suite case:

1
2
3
job_directory/
└── e_test_experiment_with_calibrati_abcd1234-5678-90ef-abcd-1234567890ef/
    └── 7c9e6679-7425-40de-944b-e07fc1f90ae7/

You can customize the folder structure in idmtools.ini:

  • name_directory = False — exclude suite and experiment names from the path
  • sim_name_directory = True — include the simulation name in the path

Results inside the container are at /home/container-data/<suite_path>/<experiment_path>/<simulation_path>.

Windows path length

Windows has a 255-character path limit. If needed, enable long path support via the Windows Group Policy Editor.

Docker image

The default Docker image for ContainerPlatform is based on Rocky Linux 9.2 and includes:

  • Python 3.9
  • mpich 4.1.1
  • numpy, pandas, scipy, matplotlib, and other common libraries for science community

The image is automatically built and published via GitHub Actions. You do not need to build it yourself.

To use a specific image:

1
2
platform = Platform('Container', job_directory='any_dir',
                    docker_image='my_docker_image:x.x.x')

Extend the Docker image

To build a custom image based on the default runtime:

1
2
3
4
FROM ghcr.io/institutefordiseasemodeling/container-rocky-runtime:0.0.6

# Add your dependencies here
RUN pip install my-package

Build it and use it:

1
platform = Platform('Container', job_directory='any_dir', docker_image='your_own_image_name:x.x.x')

Build and publish (developers only)

1
2
3
4
5
# Build
python build_container_image.py

# Push
python build_container_image.py --push
Note: Build image script need GITHUB_TOKEN with read/write permission

Docker utilities

The docker_operations.py module provides utilities to manage Docker containers within ContainerPlatform.

Key functions

Function Description
validate_container_running(platform) Checks daemon, finds or starts a container
get_container(container_id) Retrieves a container object by ID
find_container_by_image(image) Finds containers matching a given image
stop_container(container, remove=True) Stops and optionally removes a container
stop_all_containers(containers) Stops all specified containers
restart_container(container) Restarts a container
is_docker_installed() Checks if Docker is installed
is_docker_daemon_running() Checks if the Docker daemon is running
check_local_image(image_name) Checks if an image exists locally
pull_docker_image(image_name) Pulls an image from the registry
list_running_jobs(container_id) Lists running jobs on a container
find_running_job(item_id) Finds a running job by item ID

Example

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
from idmtools_platform_container.container_operations.docker_operations import (
    validate_container_running, get_container, stop_container
)

# Validate and start a container
container_id = validate_container_running(platform)

# Retrieve a container object
container = get_container(container_id)

# Stop a container
stop_container(container)

Limitations

Unsupported features

  • WorkItem is not supported on the Container Platform.

  • AssetCollection creation or referencing an existing AssetCollection is not supported. If migrating from COMPS, remove code like:

    1
2
    # Remove this when using Container Platform
asset_collection = AssetCollection.from_asset_collection_id('50002755-...')

  • Singularity is not needed with Container Platform. If migrating from COMPS, remove Singularity setup code:

    1
2
    # Remove this when using Container Platform
emod_task.set_sif(sif_path)
