Create an analyzerΒΆ

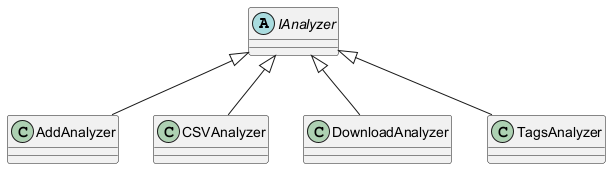

You can use built-in analyzers included with idmtools to help with creating a new analyzer. The following list some of these analyzers, all inheriting from the the IAnalyzer abstract class:

../_images/3caa92605e76e691b7a6ce66fb1098b0b2d64329eec5832360156bf2beca71c4.svg

For more information about these built-in analyzers, see:

To create an analyzer methods from the IAnalyzer abstract class are used:

../_images/e18efe0cceee8c0a96b4c2987681a8249c6dc84ffabb081fa791a88cd284a551.svg

All analyzers must also call the AnalyzeManager class for analysis management:

../_images/34acb5c36fd6469ebe3220eac45a736b8fac2a2ac3e1c5b05b7cc29b6b1a0ff7.svg

The following python code and comments, from the CSVAnalyzer class, is an example of how to create an analyzer for analysis of .csv output files from simulations:

class CSVAnalyzer(IAnalyzer):
# Arg option for analyzer init are uid, working_dir, parse (True to leverage the :class:`OutputParser`;
# False to get the raw data in the :meth:`select_simulation_data`), and filenames
# In this case, we want parse=True, and the filename(s) to analyze
def __init__(self, filenames, parse=True):
    super().__init__(parse=parse, filenames=filenames)
    # Raise exception early if files are not csv files
    if not all(['csv' in os.path.splitext(f)[1].lower() for f in self.filenames]):
        raise Exception('Please ensure all filenames provided to CSVAnalyzer have a csv extension.')

def initialize(self):
    if not os.path.exists(os.path.join(self.working_dir, "output_csv")):
        os.mkdir(os.path.join(self.working_dir, "output_csv"))

# Map is called to get for each simulation a data object (all the metadata of the simulations) and simulation object
def map(self, data, simulation):
    # If there are 1 to many csv files, concatenate csv data columns into one dataframe
    concatenated_df = pd.concat(list(data.values()), axis=0, ignore_index=True, sort=True)
    return concatenated_df

# In reduce, we are printing the simulation and result data filtered in map
def reduce(self, all_data):

    results = pd.concat(list(all_data.values()), axis=0,  # Combine a list of all the sims csv data column values
                        keys=[str(k.uid) for k in all_data.keys()],  # Add a hierarchical index with the keys option
                        names=['SimId'])  # Label the index keys you create with the names option
    results.index = results.index.droplevel(1)  # Remove default index

    # Make a directory labeled the exp id to write the csv results to
    # NOTE: If running twice with different filename, the output files will collide
    results.to_csv(os.path.join("output_csv", self.__class__.__name__ + '.csv'))

You can quickly see this analyzer in use by running the included CSVAnalyzer example class.
